Croder Spirit Crankset – Single Chainring CX

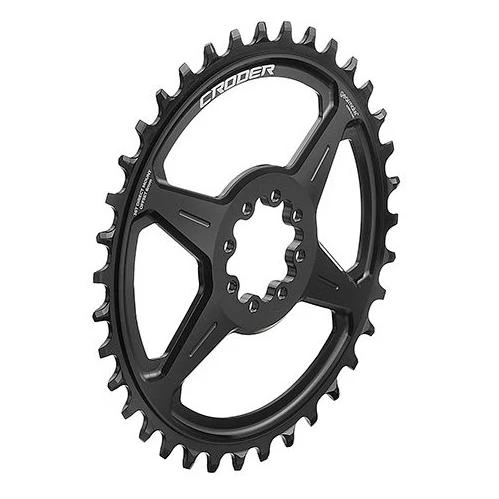

The Croder Spirit Crankset includes crank arms, direct-mount chainring, 24mm axle and fitment bolts/spacers.

As it’s a modular system, you can adjust the crank arms length as the child grows, retaining the original axle, bottom bracket and chainrings – just swap out the crank arms. By swapping the bottom bracket, you can also migrate the crankset to a different bike – from a traditional threaded frame to an advance pressfit carbon-fibre frame for example.

WEIGHT | from 519g complete (see individual components)

MATERIAL | AL7075-T6

PROCESS | Fully CNC Machined

B.C.D | Croder direct-mount

Q-FACTOR | 156mm (Road) & 159mm (MTB)

CHAINSTAY WIDTH | Approx 132mm (inside of crank arm to inside of crank arm) at tip of arms on Road axle. Approx 135mm at tip of arms on MTB axle.

CHAINLINE | 49mm (6mm offset chainrings for 135mm/142mm OLD) or 52mm (3mm offset chainrings for 148mm OLD)

AXLE ID | 24mm

CHAINS | 10, 11 & 12sp

COMPATIBILITY | Shimano Road (124mm long) BSA68/PF30/BB30/BB386 and Shimano MTB (127mm long) BSA73/BB92

The Croder Spirit Crankset is a modular crankset that allows you to select your crank arms and chainrings separately – fully customisable. A solution for cyclists who require shorter crank arms or more compact gearing, using aluminium alloy AL-7075-T6 and fully CNC machined processing.

The Spirit Crankset offers the ultimate in short, narrow and super-compact cranks offering smaller adults the right crank arms and gearing, kids/youth riders the ability to adjust their crank arms/gearing as they grow or simply a superlight crankset for all riders and disciplines!

Based on a 24mm Shimano compatible Road axle, bottom bracket (available separately) options include traditional threaded BSA 68mm and newer PF30, BB30, BB386 and BB86 found on many modern carbon fibre frames. A longer axle for BSA 73mm and BB92 MTB BB’s too.
